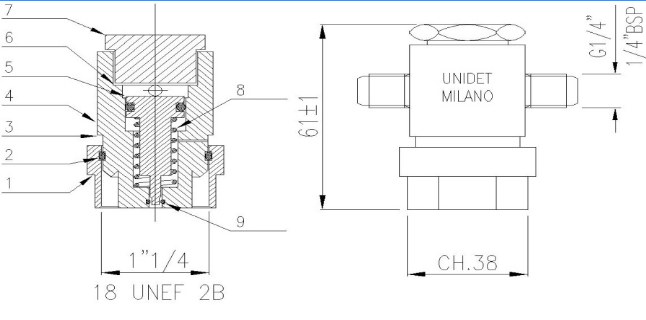

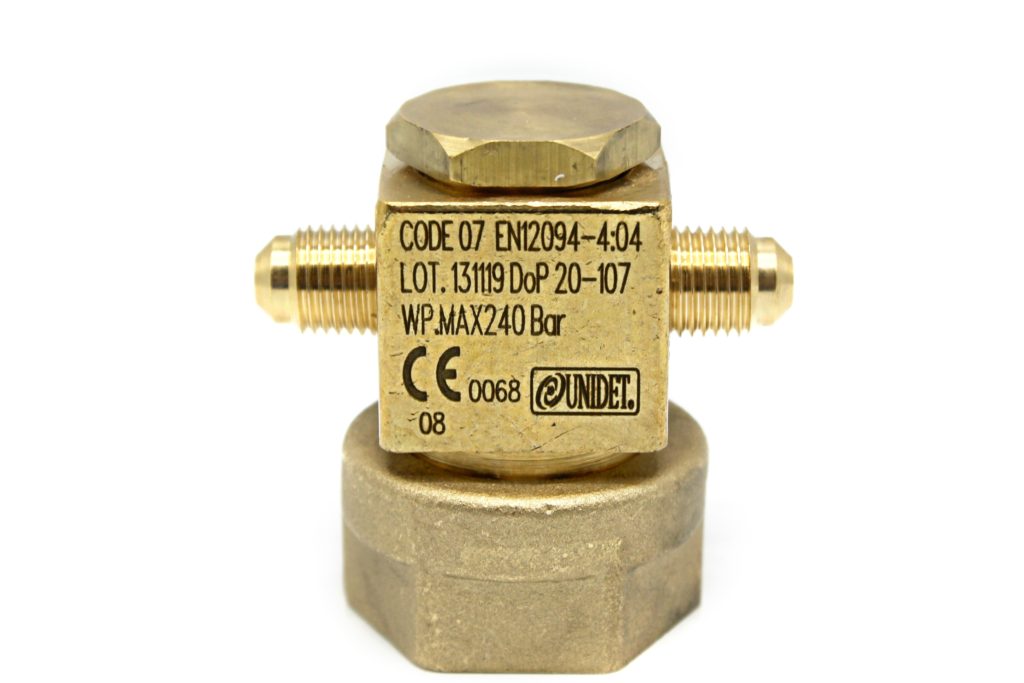

07: PNEUMATIC ACTUATOR x HRDV – CERTIFIED

DESCRIPTION

This pneumatic actuator code 07 has to be used and mounted on the Antincendi Unidet srlu high rate discharge valves and interconnector only. These are mounted on the CO₂ or N2 cylinders. As gasket we use a copper washer (code APD14). It is installed on cylinders for domestic, industrial and marine environments (Except for those saturated with ammonia and sulphuric hydrogen vapours). In accordance with the norms UNI EN 12094-4:2004.
